Cascode IF Amplifier With AGC For The G6LBQ Irwell HF Transceiver



HF Transceiver IF Amplifier Module

"Cascode IF Amplifier & AGC for the G6LBQ Irwell HF Transceiver Project"

In this blog post, I present details of  my Cascode IF amplifier with AGC function. The IF amplifier constitutes as a practical module for my HF multi-mode radio transceiver, which I call the "Irwell HF Transceiver".

My version of the Cascode IF amplifier is based on Wes Hayward's (W7ZOI) & Jeff Damm's (WA7MLH) as presented in QST magazine December 2007.

The Cascode IF amplifier is fairly simple yet it offers high performance and low noise when compared to IC amplifiers like the MC1350P, a device that has often featured in home-brew radio & transceiver builds though now obsolete.

The IF amplifier contains three hybrid cascode transistor pairs comprising of a J310 JFET transistor and a 2N3904  general purpose NPN transistor. The gain of the IF amplifier with the AGC switched off is 60dB.

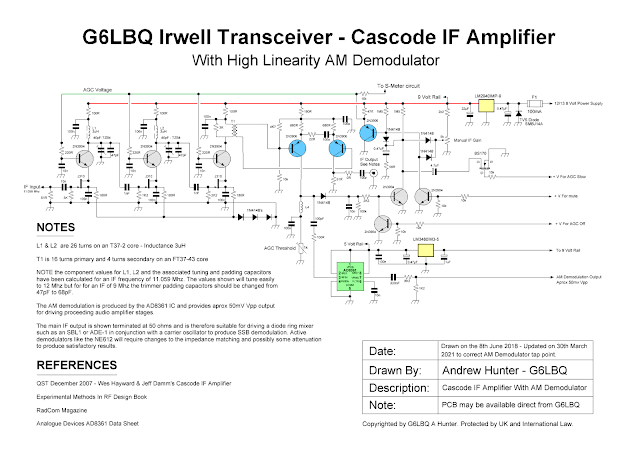

Here is the schematic diagram for my version of the cascode IF amplifier.

G6LBQ Cascode IF Amplifier Circuit

Click image to enlarge to full size!


The three cascode stages offer 100dB of AGC range. This is made possible by applying a positive bias to the source of the J310 FET's using three 1N4148 signal diodes. Without this bias voltage, the AGC range would be limited.

The first two cascode stages contain tuned output circuits; the output of the third stage drives a broadband transformer with the secondary winding connected to a differential transistor pair that feeds the AGC detector diode and the SSB/CW product detector output.

AM demodulation is done with an Analog Device AD8361, which is intended to be used as a means-responding power detector for exact measurements of RF power. As an AM demodulator the recovered audio sounds really nice and distortion free.

I designed a PCB for the IF amplifier using mainly surface mount components, which are mostly 1206 size. Here's a CAD image of the PCB

G6LBQ Cascode IF Amplifier PCB
Actual PCB Size is 100mm by 50mm

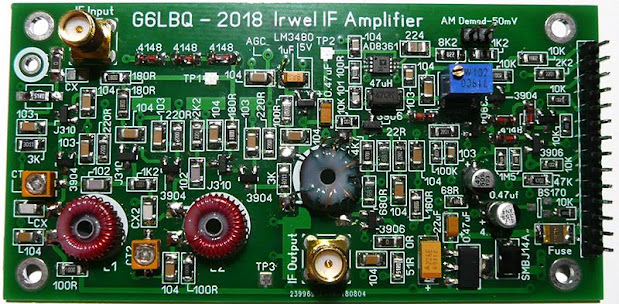

 And here's the PCB fully populated

G6LBQ Cascode IF Amplifier Module
Actual PCB Size is 100mm by 50mm


During use the IF amplifier performs well and the AGC operation is smooth with all signals sounding equal in level. I have built 3 of the IF amplifiers boards and all have performed the same with no instabilities.

The cascode IF amplifier is an excellent building block for use in homebrew receivers and transceivers. Using the component values shown, it will tune from 10MHz to 12 MHz but is easily adapted to other IF frequencies.

While the cascode IF amplifier may not be cutting edge and appears a little dated, it works well and despite experimenting with other devices and options I always end up back at the cascode!

I have also built a prototype IF amplifier using two low noise AD603 voltage controlled amplifiers. The AD603 is a fixed gain device with a built in 7 stage linear stepped attenuator. As the AD603 operates at a fixed gain noise, and distortion are kept to a minimum, making the device an excellent choice for IF subsystems.  My initial attempts at an AGC circuit to control the AD603s produced some instabilities so I need to spend some more time on this but for your interest, here is an image of the prototype AD603 IF amplifier I built.

G6LBQ AD603 IF Amplifier PCB
Actual PCB Size is 85mm by 42mm

The plan of intention with the Irwell HF transceiver project is such that nothing is set in stone and the modular approach allows for changes to be made whether it be to experiment or facilitate and upgrade.

So am I done with the IF amplifier?   Hell no, you can expect more IF amplifier shenanigans from me in the future :)

Click Here for My FollowUp Cascode IF Amplifier article.
